Boards for Roach

The ROACH (Reconfigurable Open ArchitectureComputing Hardware) board family is a series of FPGA boards developed by UC Berkeley's CASPER (Collaboration for Astronomy Signal Processing and Electronics Research) group. https://casper.berkeley.edu/wiki/Hardware
These boards incorporate a large FPGA (Xilinx Virtex-5 in ROACH-1, or Virtex-6 in ROACH-2), memory, high-speed (10Gb/s) interconnect, and a standardized interface for data converters, allowing the development of highly compute-intensive instruments for radio astronomy and other scientific applications.  CASPER maintains a large gateware library to permit streamlined implementation of complex designs using a high-level (Matlab Simulink) tool flow.

  The ROACH-1 Board

The ROACH-1 Board

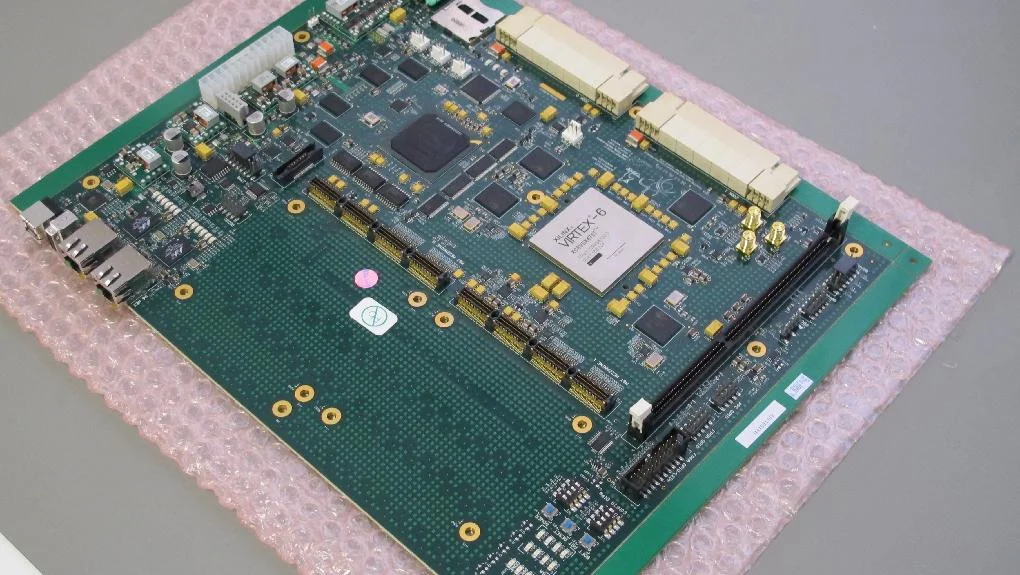

  The ROACH-2 Board

The ROACH-2 Board

Over the last several years I've developed a number of data conversion boards and a frequency conversion board for the ROACH family.  The hardware and gateware designs are all open-source: schematics are available here, and source code is available on the CASPER website.  I build small quantities of some of these boards and offer them for sale, and sometimes have some in stock.


MKID_ADC_DAC

Combines the ADC2X550-12 with the DAC2X1000-16 on one board, with a common reference,  occupying two ZDOK connectors.

Product Brief
schematic

Price: $2650         Qty in stock: 8


ADC2X550-12

Two channels of A/D conversion, 550MSPS, 12-bits, (2 ea ADS54RF63) occupies one ZDOK connector.
schematic

Price: $1600        Qty in stock: 5


DAC2X1000-16

Two channels of D/A conversion, 1000MSPS, 16-bits, (2 ea DAC5681) occupies one ZDOK connector.
schematic

Price: $1050         Qty in stock: 2


ADC2X400-14

Two channels of A/D conversion, 400MSPS, 14-bits,(2 ea ADS5474) occupies one ZDOK connector.
schematic
Price: $1500        Qty in stock: 4


DAC1X4500-12

One channel of D/A conversion at up to 4500MSPS, 12 bit resolution, occupies one ZDOK connector.
Test Report
Price: $3000      Qty in stock: 3


ADC64X65-12

64 channels of A/D conversion, 65MSPS, 12-bits, (8 ea ADS5272) occupies two ZDOK connectors.
schematic
Price: $2700        Qty in stock: 3


ADC6X1000-12

Six channels of A/D conversion, 1000MSPS, 12-bits, (6 ea ADS5400), occupies two ZDOK connectors.
schematic
Price: contact us      Qty in stock: 0


MUSIC IF

Intermediate frequency board.  Provides local oscillator generation, clock generation, quadrature frequency upmixing and downmixing, settable attenuation in the 2 to 6.8 GHz range.  Used for Kinetic Inductance Detector systems.
schematic
Price: $4500          Qty in stock: 2
